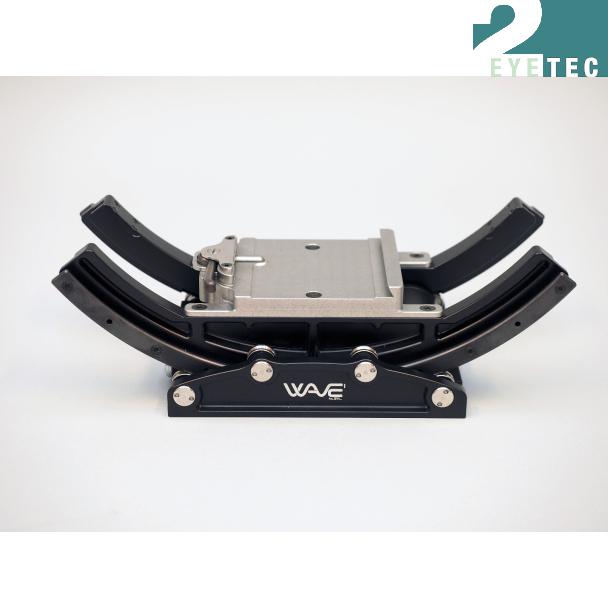

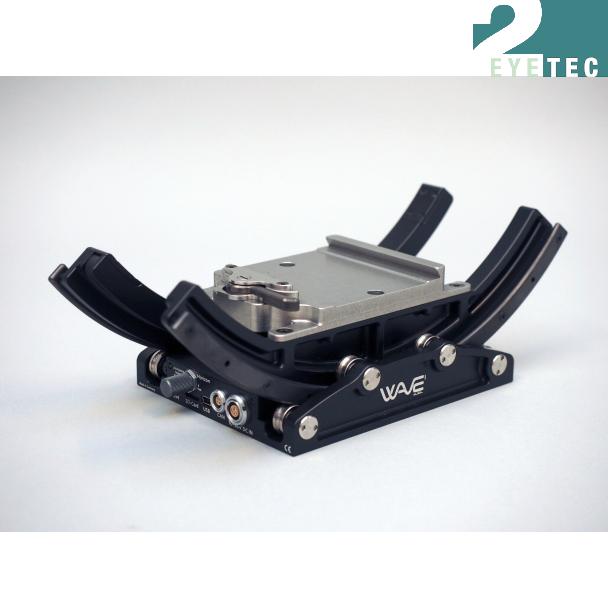

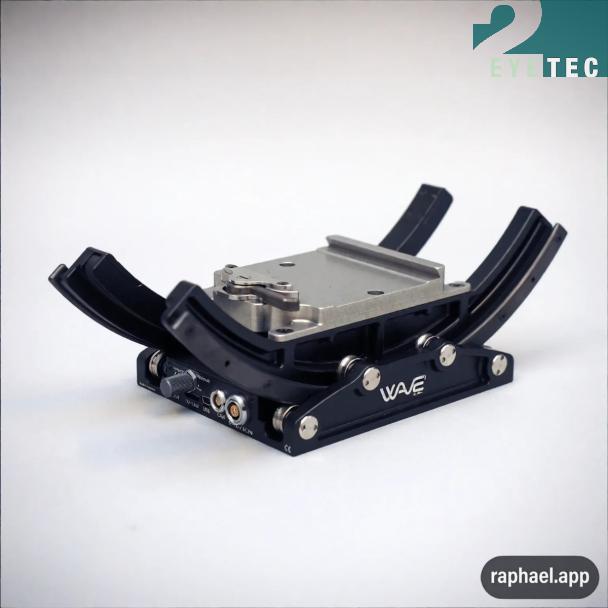

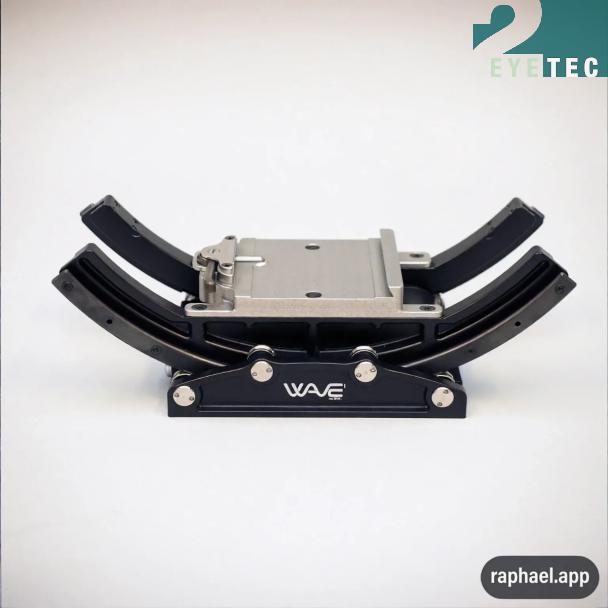

Electronic Horizon Stabilization System for Professional Camera and Camera Support Systems
Details
Wave1
Wave1 is an electronic horizon stabilization system designed for active compensation of roll-axis disturbances in professional camera setups.
The system stabilizes the horizon in real time and provides precise horizon control under dynamic operating conditions. Stabilization is performed independently of pan and tilt movement, maintaining a consistently aligned image plane throughout operation.
Wave1 is engineered for use in professional stabilizer, remote head, and specialty rigging applications. It extends existing camera support platforms with active roll-axis correction and enables consistent horizon control in demanding production environments.
Its compact mechanical design and installation height of only 60 mm allow seamless integration into existing camera builds while minimizing impact on overall system geometry.
- Steadicam® and stabilizer systems
- Remote heads and robotic camera systems
- Vehicle mounts and specialty rigging
- Handheld and shoulder-mounted camera operation
- Motion control applications
- Maximum Payload: 25 kg
- Operating Voltage: 10–36 V DC
- Power Consumption: 0.2 A nominal / 2.5 A peak
- Tilt Range: up to 90°
- Dimensions: 130 × 290 × 90 mm
- Installation Height: 60 mm
- Weight: 1.45 kg

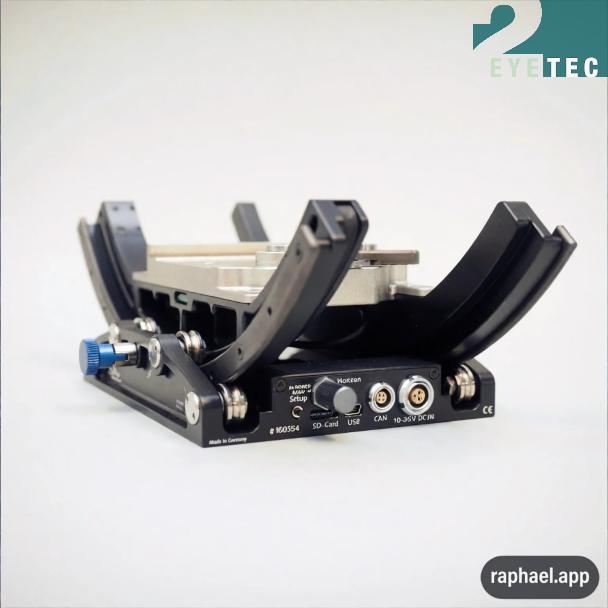

- Interfaces: LEMO, Mini-USB, Micro-SD
- Real-time electronic horizon stabilization
- Active roll-axis correction for precise horizon control
- Independent stabilization during pan and tilt movement

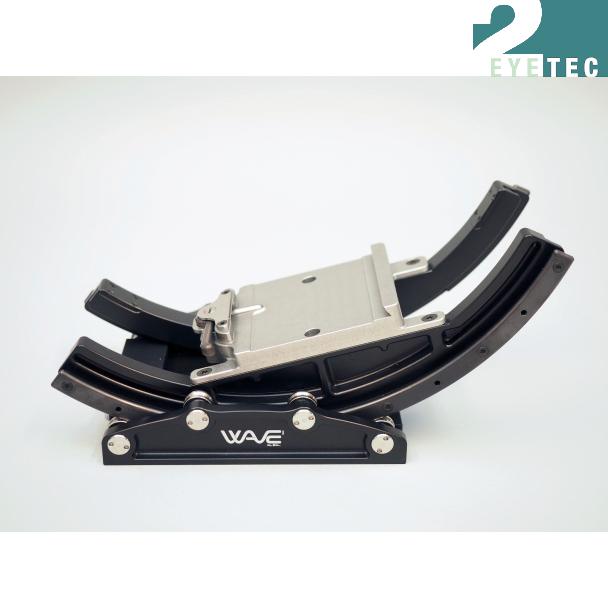

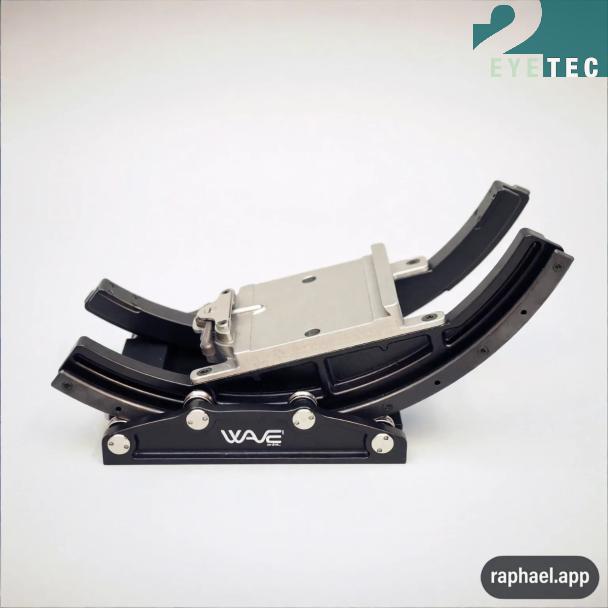

- Stabilization range up to ±25°
- Integrated QuickLok™ receiver for Steadicam® dovetail plates
- Low Mode operation up to 90° tilt
- Supports professional camera setups up to 25 kg payload
